Flomec Electromagnetic & Other Meters

As an engineer, you're challenged to solve problems that often seem impossible to others. FLOMEC® engineers are challenged everyday to do the same. At Great Plains Industries, Inc.®, every product is engineered and built to meet our 'triple standard test' of delivering better performance and higher quality at a lower cost.Whether you need to measure for water, gasoline, chemicals, dairy, engine oils, transmission fluids, and various industrial liquids, FLOMEC products are engineered to perform better.


Flowmeters Engineered To Be Better

Flomec QS100 Turf Irrigation Flow Sensor

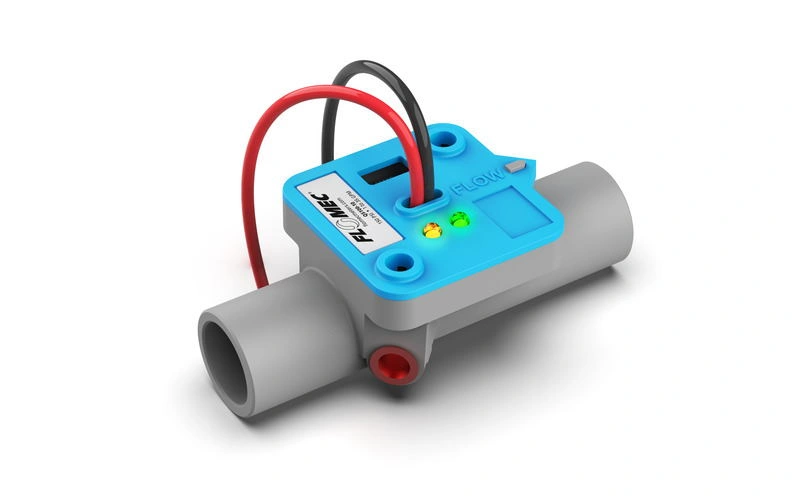

QS100 Turf Irrigation Flow Sensor

The FLOMEC® QS100 Ultrasonic Turf Irrigation Flow Sensor has NO moving parts and NO flow restrictions, making it nearly INDESTRUCTIBLE.



It’s SO ACCURATE it senses a dripping faucet. The QS100 measures water flow rates 5X LOWER than competing flow sensors. It literally senses leaky valves, blockages, and other problems.

This 1-inch flow sensor is not only economically priced but is also excellent for commercial and residential irrigation flow detection and measurement of small leaks and line breaks.

The ability to detect flows down to 0.22 GPM makes it ideal for low-flow drip zones. In addition to its low-flow capabilities, ultra-sonic technology means no moving parts to wear out or fail when winterizing systems using compressed air.

Benefits:

  • Low-cost, effective, and easy installation
  • No moving mechanical parts (low-maintenance)
  • Simple two-wire connector (for power and pulse)
  • Compatible with irrigation controllers (common name brands)
  • High accuracy: ± 2.0% of reading (compared to full-scale accuracy)
  • Provides extended leak detection down to 0.1 fps (0.03 m/s)
  • LED light indicators: (green for power and amber for pulse)
  • Patented design
  • Ideal for clean water flow measurement
  • With the optional NSF61 rated version, these meters are perfect for those applications where drinking quality water is required External wiring: (direct burial wire)

Applications:

  • Agriculture Irrigation
  • Turf | Landscape Irrigation Systems
  • Micro Irrigation Systems
  • Groundwater Monitoring
  • Potable Water (NSF61 Certified Version Available)
  • Sub-Metering Applications:
  • High Rise Tenant Buildings
  • Apartment Complex
  • Universities
  • Commercial Businesses
  • Processing Facilities
Download Product Documents Below

FLOMEC® QS100 Turf Irrigation Flow Sensor Data Sheets

Download More Info








Flomec QS200 Turf Irrigation Flow Sensor
Flomec QS200 Turf Irrigation Flow Sensor


FLOMEC’s QS200 IS THE MOST ACCURATE WATER FLOW SENSOR IN THE IRRIGATION INDUSTRY

Why? The QS200 Turf Irrigation Flow Sensor measures water flow rates 5x lower than other flow sensors on the market AND offers extended leak detection down to 0.1 feet per second. That means it can detect leaking valves, blockages, and other hidden irrigation system problems that other flow sensors can’t.

HERE’S THE PROBLEM WITH MOST FLOW SENSORS IN COMMERCIAL IRRIGATION APPLICATIONS.

Paddlewheel, nutating disc, and other standard flow sensors have mechanical parts that must start moving before the sensor can detect any flow. For the mechanical parts to begin moving, the flow rate must be high enough to overcome friction.

That may not be a problem with some applications, where mechanical flow sensors work well, but commercial irrigation is different. The low flows typical in drip lines and bubblers often aren’t enough to get those mechanical parts moving.

So what happens? The sensor reads “no flow” even when there IS flow in the pipe – it’s just below that sensor’s ability to see it – that’s a RED HERRING! Getting a “No Flow” reading could hide small system leaks. These small leaks add up to significant losses over time.

 Benefits:

  • High accuracy and repeatability, direct volumetric reading
  • Measures high and low viscosity liquids
  • No requirement for flow conditioning (straight pipe runs)
  • Quadrature pulse output option and bi-directional flow
  • Optional Exd I/IIB approval (ATEX, IECEx)
  • Only two moving parts

Applications:

  • Batching
  • Food & Beverage Processing
  • Irrigation
  • Fuel Products
  • High Water Volume Mixing
  • Chemical Feed Lines
  • Pharmaceuticals
  • High Precision / High Pressure
  • Thin Viscosity Fluids Under 100 Centipoise
Download Product Documents Below

FLOMEC® QS200 Turf Irrigation Flow Sensor Data Sheet

Download More Info








Flomec QS200 Insertion Ultrasonic Flowmeter SADDLE
QS200 Insertion Ultrasonic Flowmeter SADDLE

The 6, 8, 10, and 12-inch saddles are designed exclusively for the QS200 Insertion Ultrasonic Flowmeter. Supporting commercial and agricultural irrigation applications on large size pipes, the QS200 will accurately provide the information your controller needs to
display the flow rate and accumulated total.

QS200 INSERT

Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.6 m/s) and temperatures are
below 140° F (60° C). QS200 inserts are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 inches (914.4 mm) in length with UL Style 116666 direct burial insulation.

Benefits:

  • Low-cost, effective, and easy installation
  • No moving mechanical parts (low-maintenance)
  • Simple two-wire connector (for power and pulse)
  • Compatible with irrigation controllers (common name brands)
  • High accuracy: ± 2.0% of reading (compared to full-scale accuracy)
  • Provides extended leak detection down to 0.1 fps (0.03 m/s)
  • LED light indicators: (green for power and amber for pulse)
  • Patented design (QS200)
  • Ideal for clean water flow measurement
  • External wiring: (direct burial wire)

Applications:

  • Agriculture Irrigation
  • Turf | Landscape Irrigation Systems
  • Micro Irrigation Systems
  • Groundwater Monitoring

Sub-Metering Applications:

  • High Rise Tenant Buildings
  • Apartment Complex
  • Universities
  • Commercial Businesses
  • Processing Facilities
Download Product Documents Below

FLOMEC® QS200 Insertion Ultrasonic Flowmeter SADDLE Data Sheet

Download More Info








Flomec QSE Mag Flowmeter
Flomec QSE Mag Flowmeter

The QSE Mag Series is a dependable highly accurate electromagnetic flowmeter designed for flow and usage monitoring in commercial applications.

The Noryl™ housing and flow tube offer a lightweight, easy-to-install Mag Meter that is resistant to heat (210°F [99°C]) and compatible with many water-based liquid solutions. FOR INSTALLATION ON PLASTIC PIPE ONLY.

The QSE Mag Meter monitors flow rate and total flow in a wide variety of applications including HVAC, Turf/ Irrigation, and other water reclamation applications.

The QSE is NSF61 Certified for those applications where potable water regulations must be met.

The QSE Mag comes in seven line sizes: ½”, ¾”, 1”, 1.5”, 2”, 3”, & 4” – FOR INSTALLATION ON PLASTIC PIPE ONLY.

Our mag meter provides a low investment and operating costs. It is non-intrusive with no moving parts to wear out, maintenance, repair costs are low and it tolerates high flows without damage.

Our accurate magnetic flowmeter has a slightly modified bore that permits unobstructed flow and minimizes flow disturb stances and straight pipe requirements


Benefits:

  • A wide turndown ratio of 60:1
  • + 0.5% Accuracy of Reading (from 0.25 fps to 15 fps [0.08 to 4.6 m/s)
  • Compatibility with the Flomec QSI I/O board or the GPI 09 Electronics Display
  • Housing ported with “Thermal Well Supports” for sensors (Energy Management)

Applications:

Turf / Irrigation

  • Agriculture Irrigation
  • Turf Irrigation Systems
  • Micro Irrigation Systems
  • HVAC
  • EMS (Energy Management Systems)
  • BAS (Building Automation Systems)

Institutional

  • Water Discharge Monitoring (click to read more)
  • Chilled water
  • Domestic water (hot and cold)
  • Energy sub-metering (BTU hot and cold)
  • Process (blow down, make up, boiler feed, etc.)
Download Product Documents Below

FLOMEC® QSE Mag Flowmeter Data Sheet

Download More Info








Flomec DP Series Insertion Impeller Meters

FLOMEC® Insertion Meters are cost-effective stainless steel meters for measuring the flow of water, fuels, and other low viscosity liquids in pipe sizes 1.5” – 100” (10 – 2500 mm). Insertion Meters are a flexible, economical method to measure large flow rates with small pressure drops and low installation costs, with most applications battery powered with a FLOMEC totalizer. Applications include HVAC, hot and cold water, fire systems, water distribution (management and treatment), boiler feed water, wastewater and hydrant flow testing.

Benefits:

  • IP68 (NEMA6) submersible 316SS construction (cable connection only)
  • Intrinsically safe option available
  • DP525 version suitable for “hot tap” installations
  • Quadrature pulse option available for bi-directional flow measurement option

Applications:

  • HVAC
  • Hot & Cold Water
  • Fire Systems
  • Water Distribution (Management & Treatment)
  • Boiler Feed Water
  • Waste Water
  • Hydrant Flow Testing
Download Product Documents Below

FLOMEC® Flomec DP Series Insertion Impeller MetersData Sheet
