Flomec Display & Output Instruments

As an engineer, you're challenged to solve problems that often seem impossible to others. FLOMEC® engineers are challenged everyday to do the same. At Great Plains Industries, Inc.®, every product is engineered and built to meet our 'triple standard test' of delivering better performance and higher quality at a lower cost.Whether you need to measure for water, gasoline, chemicals, dairy, engine oils, transmission fluids, and various industrial liquids, FLOMEC products are engineered to perform better.

Flowmeters Engineered To Be Better

E Series: Explosion-proof Monitor / Totalizer
Display & Output Instruments
The E018 by FLOMEC® offers you an enclosure designed to be used in rough and tough applications, beyond being just explosion proof. Its sturdy design and ease of use are unequaled by any other explosion proof indicator in the market. The E018 is always your first and safest choice in explosion proof applications.


Benefits:

  • Save time with the easy-to-operate through glass keypad: no need to remove the front cover nor to arrange a work permit
  • Easy installation with the spacious chamber and plug and play connectors
  • Long life duration in extremely salty atmospheres (offshore) with heavy duty stainless steel Exd enclosure
  • Key information at a glance as the display shows flow rate, total, measuring units and a flow rate indicating speedometer

Features:

  • Selectable on-screen engineering units; volumetric or mass
  • 7 digit flow rate / total and 11 digit accumulated total
  • 16 point linearization of the flow curve – with interpolation
  • Power options: Loop powered, battery and 8 – 30V (dc)
  • Isolated, loop powered 4 – 20mA output according to linearized flow rate
  • Scaled pulse output according to linearized accumulated total
  • Ability to process all types of volumetric or mass flowmeter signals: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), Active pulse signals. (0)4 – 20mA and 0 – 10V (dc) analog inputs are pending.
  • HART communication

Applications:

  • Explosion proof applications
Download Product Documents Below

FLOMEC® E Series: Explosion-proof Monitor / Totalizer Data Sheets

Download More Info







Flomec Field mount Indicator (F Series)
Flomec QS200 Turf Irrigation Flow Sensor

Electronics are designed with several different input and output options. Rugged and dependable

 Benefits:

  • Field-mountable with back enclosure (included)
  • Easy programming with a sensible menu-driven structure
  • Large 0.67 in. (17mm) 7 digit display
  • Accepts several different input signals
  • Batching
  • Net Use
  • 4-20mA Output
  • HART Protocol
  • High Low Alarms
  • Linearization
  • Two Stage Valve Control
  • Temperature Compensation

Applications:

  • The F-Series is your first and safest choice for field-mount indicators. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40° F up to 176° F (-40° C up to 80° C) for safe and hazardous area applications.
  • Applications where net flow calculation at base conditions is desired without the influence of thermal product expansion.
  • Liquid flow measurement with mechanical flowmeters where a precise calculation over the full measurement range is required. Also, continuous flow rate monitoring is required.
  • For batching small up to very large quantities. Single or repeating batches.
  • Fuel consumption calculation for diesel engines on board of ships or trains. Sum function: where flows are split-up in two pipelines and total flow has to be calculated.
Download Product Documents Below

FLOMEC® Field mount Indicator (F Series)

Download More Info





Flomec RT40 Flow Rate Totalizer

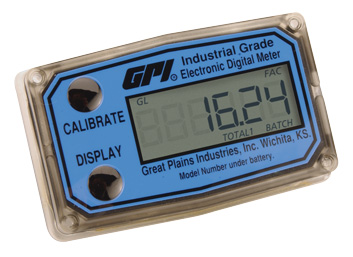

09 Display
The FLOMEC® RT40 Flow Rate Totalizer LCD display is specifically designed for displaying flow rates and totals from flow meters with pulse, sine wave, or frequency outputs. The instrument displays re-settable (batch) total, cumulative total, and instantaneous flow rate in engineering units programmable by the user.


Benefits:

  • Economic and robust LCD display in a GRN housing
  • Robust LCD display suitable for mine sites and service truck installations, in an aluminum housing
  • Large backlit** LCD screen displaying 5-digit flow rate, 6-digit resettable total and 8-digit cumulative total
  • Battery or externally powered; battery life span is 3 years, approximately**
  • Robust IP66/67 (NEMA 4) GRN housing capable of being field or panel mounted
  • CRobust IP65 (NEMA 4) Aluminum housing capable of being field or panel mounted
  • Scaled pulse output**+
  • Universal inputs
  • Reverse polarity protection
  • Flowmeter and pipe mount kits available
  • PIN-protected programming with a simple programming flowchart

**External power required for backlight or pulse output features.

+Max. Output Frequency 20 Hz, K-factor must be divisible by 10.

Applications:

  • Heavy duty use in mine sites and mobile applications
Download Product Documents Below

FLOMEC® Flomec RT40 Flow Rate Totalizer Data Shee

Download More Info



Flomec RT14 Flow Rate Totalizer
RT14 Flow Rate Totalizer

FLOMEC® LCD display RT14 is a fully programmable, self-powered flow rate totalizer specifically designed for computing & displaying flow rates & totals from flowmeters with pulse, sine wave or frequency outputs. The instrument displays resettable (batch) total, accumulated total and instantaneous flow rates in engineering units as programmed by the user. Flowmeter inputs: suitable use with most pulse/frequency output meters such as reed switch, coil, voltage pulse (Wiegand), NPN and PNP.

CONTROL OUTPUTS

An unscaled pulse output serves as an input signal amplifier ideally suited for coil type inputs from turbine or paddle wheel meters. The output can be transmitted over and can be configured for NPN/PNP with wiring connection.

PROGRAMMING

Simple PIN protected flowchart programming with English prompts guide you through the programming routine greatly reducing the need to refer to the instruction manual.



Benefits:

  • Self or external powered, 8-digit LCD total & 8-digit cumulative totalizer, 5-digit rate display
  • Robust IP66/67-NEMA4X universal mount glass reinforced nylon enclosure with rubberized buttons and polycarbonate lens
  • GRN field & panel mountable housing
  • Scaled pulse, 4-20mA (Loop Powered) Output, multi-point linearization of flow input or frequency inputs
  • Flow alarm for high, low or high/low
  • PIN protected programming
  • Simple flowchart touch key programming
  • Reverse polarity protection
  • Non-volatile memory, Long battery life
  • Flowmeter and pipe mount kits available

Applications:

  • Mounted either direct to the meter or remotely mounted in safe areas
  • Connections to PLC available
  • Total, Accumulated Flowrate display
  • 10 point Linearisation
Download Product Documents Below

FLOMEC® RT14 Flow Rate Totalizer Data Sheet

Download More Info







Flomec EB11 “EasyBatch” Batch Controller

Flomec EB11 “EasyBatch” Batch Controller
The FLOMEC EB11 “EasyBatch” is a dual-stage batch controller designed to create an efficient and accurate dispensing experience. Mountable either directly onto a FLOMEC® flow meter or remotely, and compatible with multiple types of industry signals, the EB11 allows the user to control the volume of fluid dispensed into their process, while the large 7-digit display with back light enables easy reading of the batch status in either light or dark conditions. Housed in an IP66/67-NEMA4X rated Glass Reinforced Nylon enclosure for increased impact and corrosion resistance, particularly in washdown environments. The EB11 contains 2 digital NPN outputs with a current rating of up to 300mA for direct control of solenoid valves, or to connect to relays to allow for the control of large valves and pumps.


Benefits:

  • Easy to use 2 button controller
  • Weather-resistant and durable IP66/67 –
  • NEMA4X enclosure
  • Easy to read backlit 7-digit display
  • Retained settings after power loss

Applications:

  • Commercial Baking
  • Agricultural Chemicals
  • Pharmaceuticals & Cosmetics
  • Food Processing
  • Cleaning Products
  • Brewing
  • Water Treatment
Download Product Documents Below

FLOMEC® EB11 “EasyBatch” Batch Controller Data Sheet

Download More Info







Flomec Q9 Display
Q9 Display

The Q9 is the latest version of the popular FLOMEC computer display. It incorporates many of the most requested features over the years including low battery indication and the ability to display custom units with a name label. Optional plug-in daughterboards for 4-20mA, scaled pulse, and external power supply are easily added as original equipment or as a retrofit in the field. All of the daughterboard parameters are addressable through the two buttons on the Q9 display. An additional new feature is the ability to display velocity as well as rate and totals.

Packaged in the same form as the familiar FLOMEC display, the Q9 operates on two AAA batteries with approximately 2 years of operation and maintains all of the same intrinsically safe approvals of past products.


Benefits:

  • Highly Visible LCD characters against a yellow-tinted background
  • Many Field Configurable options for ease of operation including diagnostic mode and custom unit name
  • Easily retrofitted to most existing FLOMEC turbines
  • Maximum versatility with optional pre-configured plug-in daughterboards to supply 4-20mA and Scaled Pulse
  • Convenient Battery Power Level indication with automatic low battery warning • Safety first design with FM Class 1, Div 1; ATEX; IECex; cFM; CE approvals
  • Providing operator consistency for all of your meters, the Q9 can be used with G2, TM, and A1 meters
  • Ultimate ease of operation with permanent preprogrammed 5 point factory calibration in Gallons
  • Accommodates a wide range of technical expertise with 3 Field calibration methods (K-Factor, Correction Factor or Dispense Display)
  • For simple Plug and Play installation, the Q9 is factory calibrated set to display Cumulative Total, ReSettable Batch Total, and Rate in Gallons per minute

Applications:

  • For use with G2, TM, and A1
Download Product Documents Below

FLOMEC® Q9 Display MetersData Sheet

Download More Info
